QUILTED STUDIO BLANKET

Our Studio Blanket is the perfect solution for sound absorption and reducing sound reverberation time.

Quilted Studio Blanket Quilted Studio Blanket Quilted Studio Blanket Quilted Studio Blanket Quilted Studio Blanket Quilted Studio Blanket Quilted Studio Blanket Quilted Studio Blanket Quilted Studio Blanket

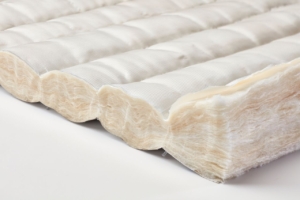

Our Quilted Studio Blanket

Our Quilted Studio Blanket provides perfect sound absorption and creates a personalized listening experience in a small, medium, or even large performing spaces. The Studio Blanket assures sound is absorbed efficiently with NRC ratings from 1.00 to 1.05. Standard Studio Blanket colors are white or black and manufactured up to 30 feet in length. White Blankets capable of being color customized with latex paint before or after mounting to suit your project space.

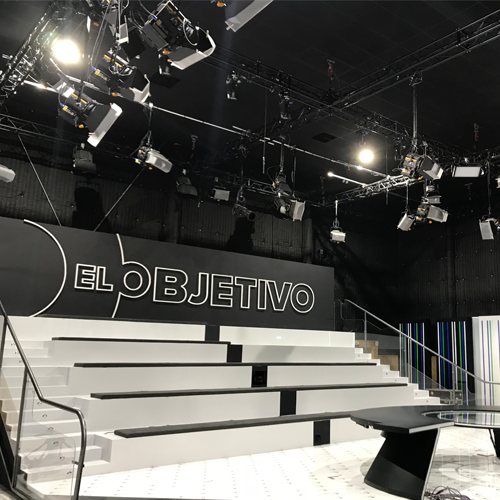

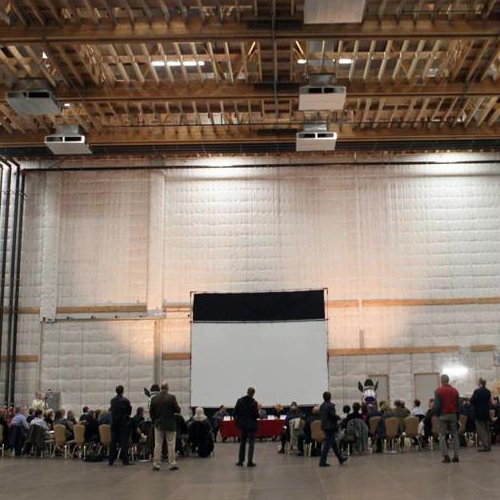

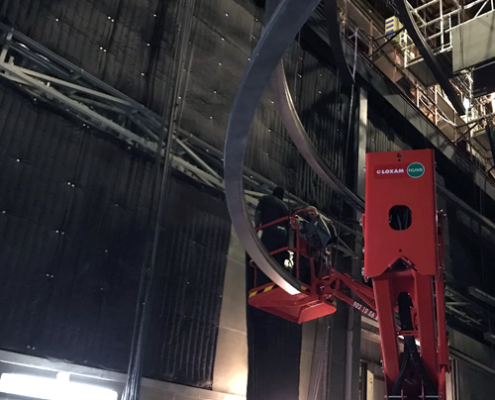

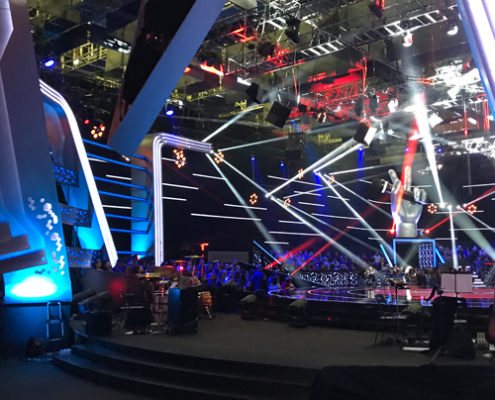

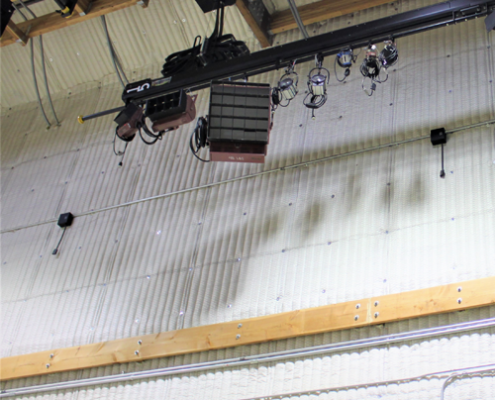

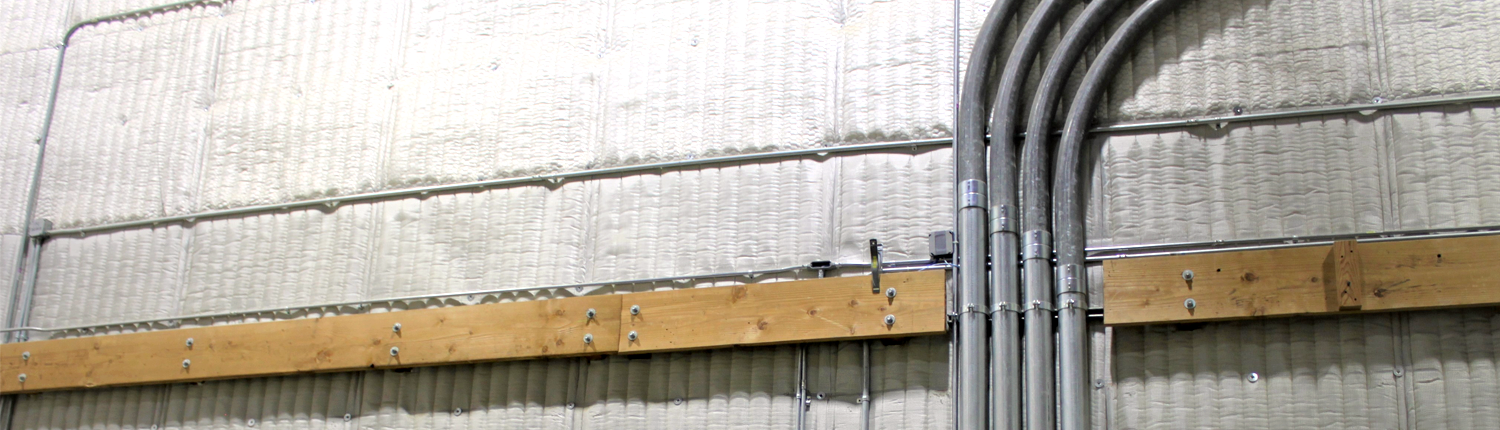

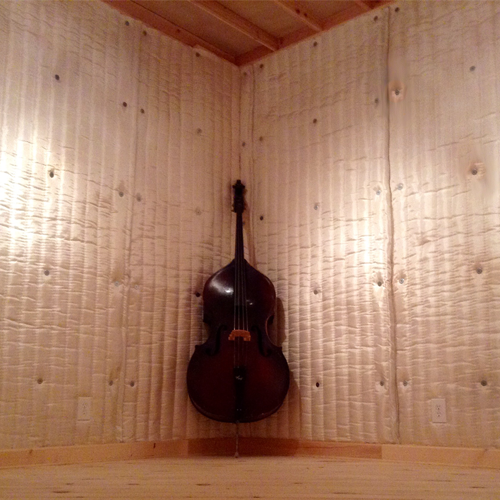

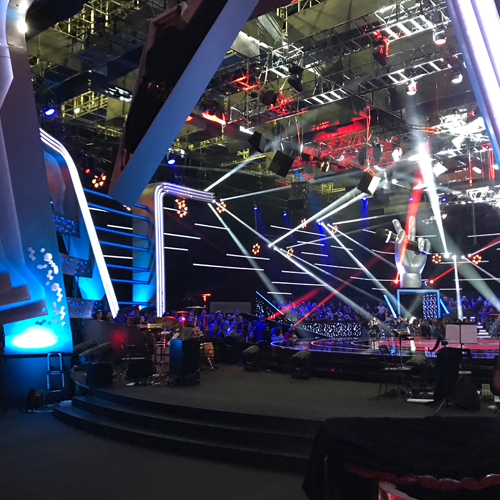

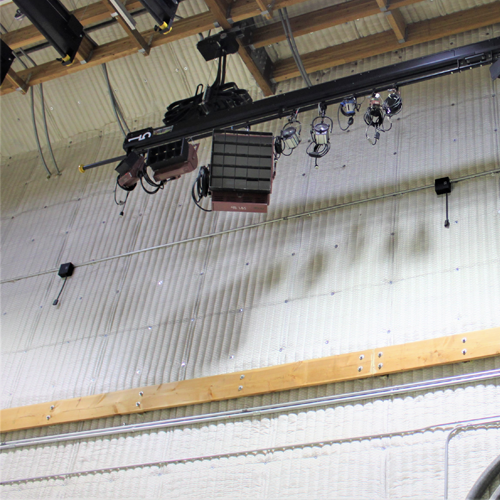

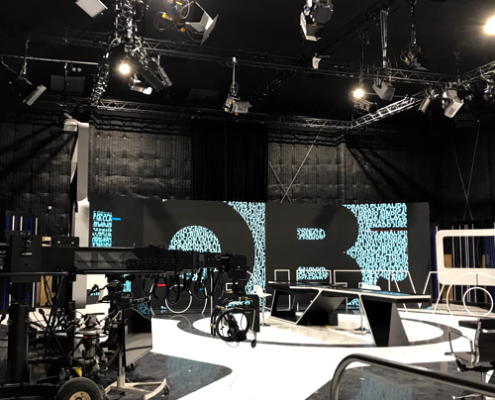

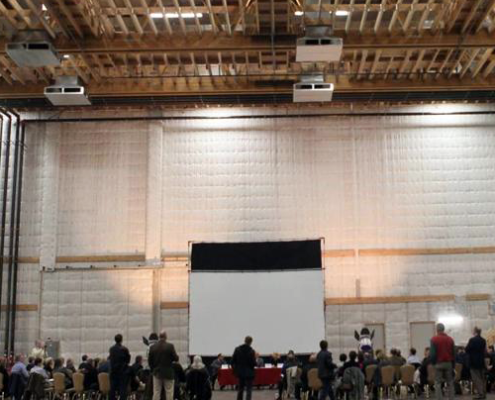

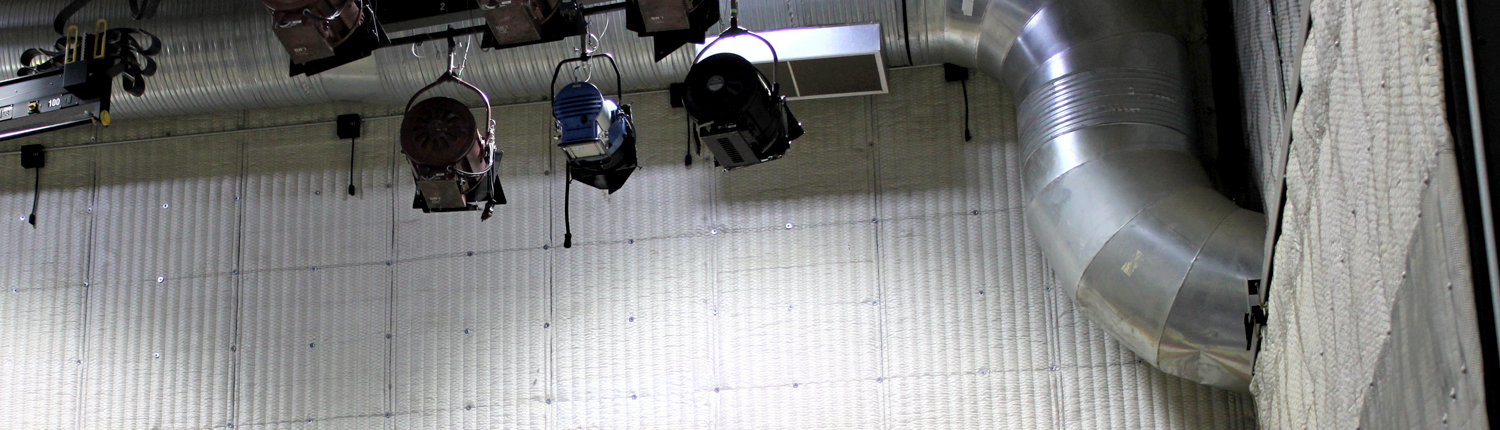

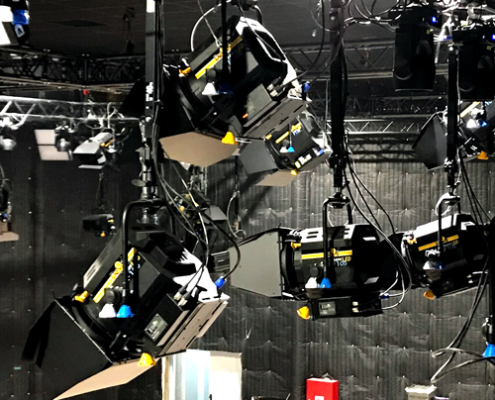

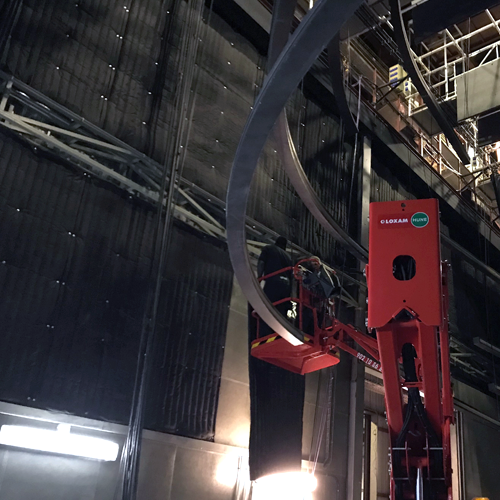

  • Quilted Studio Blanket (Black)
  • Quilted Studio Blanket (White)
  • Quilted Studio Blanket (White)
  • Quilted Studio Blanket (White)
  • Quilted Studio Blanket (Black)
  • Quilted Studio Blanket (White)
1234567

Studio Quilt is Ideal for

Satisfied Customers

  • Recording/Production Studios
  • Conference rooms
  • Entertainment or Podcast rooms
  • Mechanical rooms and enclosures
  • Gyms, training centers or other high ceiling areas
  • Warner Bros. Studios, Leavesden, UK
  • Pinewood Studios, Iver, UK
  • Sky Studios, Elstree, UK
  • West London Film Studios, Hayes, UK
  • Bovingdon Studios, Bovingdon, UK
  • Outerspace: Space Studios, Manchester, UK
  • Shinfield Studios, Shinfield, UK
  • RD Content, London, UK
  • Working Title Films, London, UK
  • Netflix, Uxbridge, UK
  • Park Royal Studios, London, UK
  • Plus a variety of non-studio ceiling applications.
  • Universal Studios
  • Sony Pictures Studios
  • Paramount Pictures
  • Warner Bros. Studios, USA
  • Atresmedia, ES
  • Raleigh Studios, Los Angeles, CA
  • Trilith Studios, Atlanta, GA
  • Vivid Kid Studios, Brooklyn, NY
  • The Calvert Studios, Van Nuys, CA
  • Tyler Perry Studios, Atlanta, GA
  • Pinewood Studios, USA, Canada
  • Manhattan Beach Studios, Manhattan Beach, CA
  • Quixote Studios and many more.

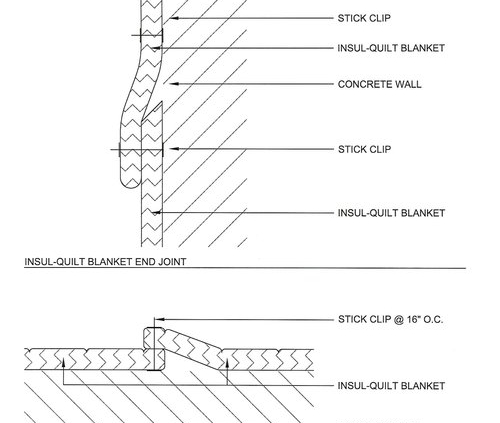

Insulquilt Sound Absorbing Studio Quilt Schematics

PRODUCT CODE: IQF-F – Studio Quilt (NRC 1.00 / STC 16)

PRODUCT INFORMATION

  • Size: 48” wide foil or 46” wide-scrim up to 30’ long
  • Weight: .44lbs/sq foot.

Standards Tests and Approvals

  • ASTM C423-17: NRC 1.00 – 1.05
  • ASTM E-90-09

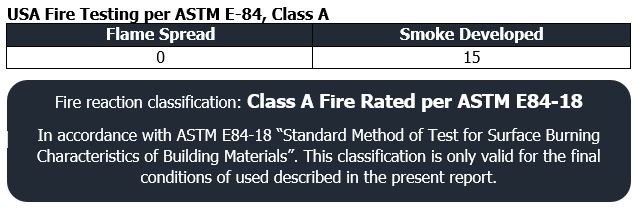

USA Fire Testing per ASTM E-84, Class A

  • Flame Spread: 0
  • Smoke Density: 15
See results

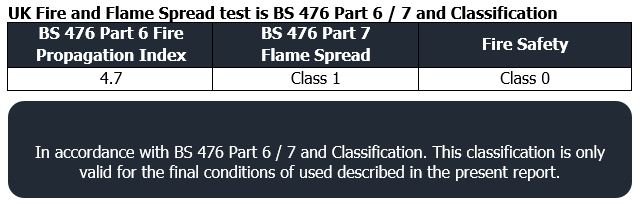

UK Fire and Flame Spread test is BS 476 Part 6 / 7 and Classification

  • BS 476 Part 6 Fire Propagation Index = 4.7
  • BS 476 Part 7 Flame Spread = Class 1
  • Fire Safety = Class 0
See results

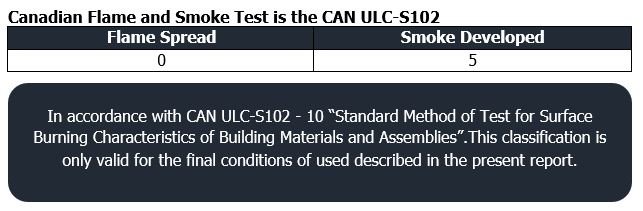

Canadian Flame and Smoke Test is the CAN ULC-S102

  • Flame Spread = 0
  • Smoke Developed = 5
See results

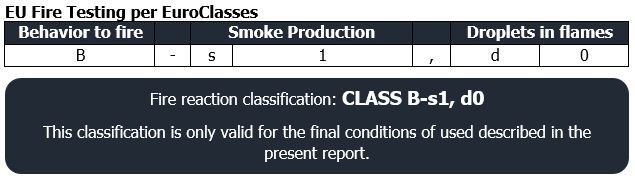

EU Fire Testing per EuroClasses
  • UNE-EN ISO 11925-2:2011
  • NE-EN 13823:2012 +A1:2016
  • Fire reaction classification: CLASS B-s1,d0
See results

Installation Instructions & Product Specification Sheets

IQF-F Studio Blanket Foil Backing

IQF-F Studio Blanket Foil Backing

48 inches wide

(NRC 1.00 / STC 16)

SPECIFICATIONS SHEET
IQF-S Studio Blanket Cloth Backing

IQF-S Studio Blanket Scrim Backing

46 inches wide

(NRC 1.05 / STC 12)

SPECIFICATIONS SHEET

Schematics

Quilted Studio Blanket Schematics

QSB Adjointing QSB Opening QSB Overlap QSB Sprinkler

Installation Method

Quilted Studio Blanket Installation

INSTALLATION METHOD
